High Voltage Solar Power Hybrid Three Phase Inverter

High Voltage Three Phase Hybrid Inverter 5kW-25kW

Model: SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2
Output Power Capacity: 5kW/6kW/8kW/10kW/12kW/15kW/20kW/25kW
100% unbalanced output, each phase
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 50A
High voltage battery, higher effificiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

INQUIRY

Product Details

Product Tags

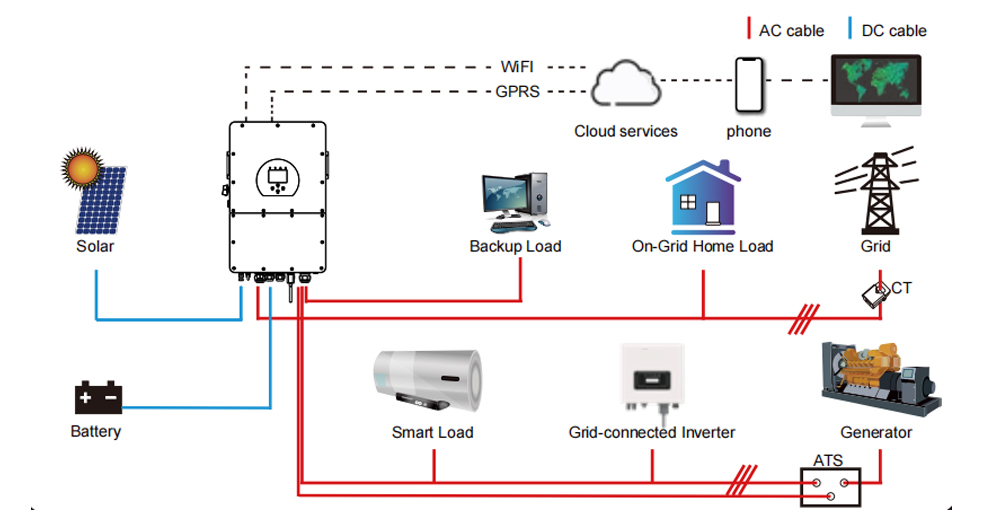

Basic System Architecture

The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.Generator or Utility,Solar panels. Consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air condittioner,it can also power farm center pivot machines.

25kw HV solar hybrid inverter system.jpg

Product Introduction
Three phase hybrid inverter is a multifunctional inverter,combining functions of inverter,solar charger and battery charger to offer uninterruptible power support with portable size.Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging,AC/solar charging,and acceptable input voltage based on different applications.

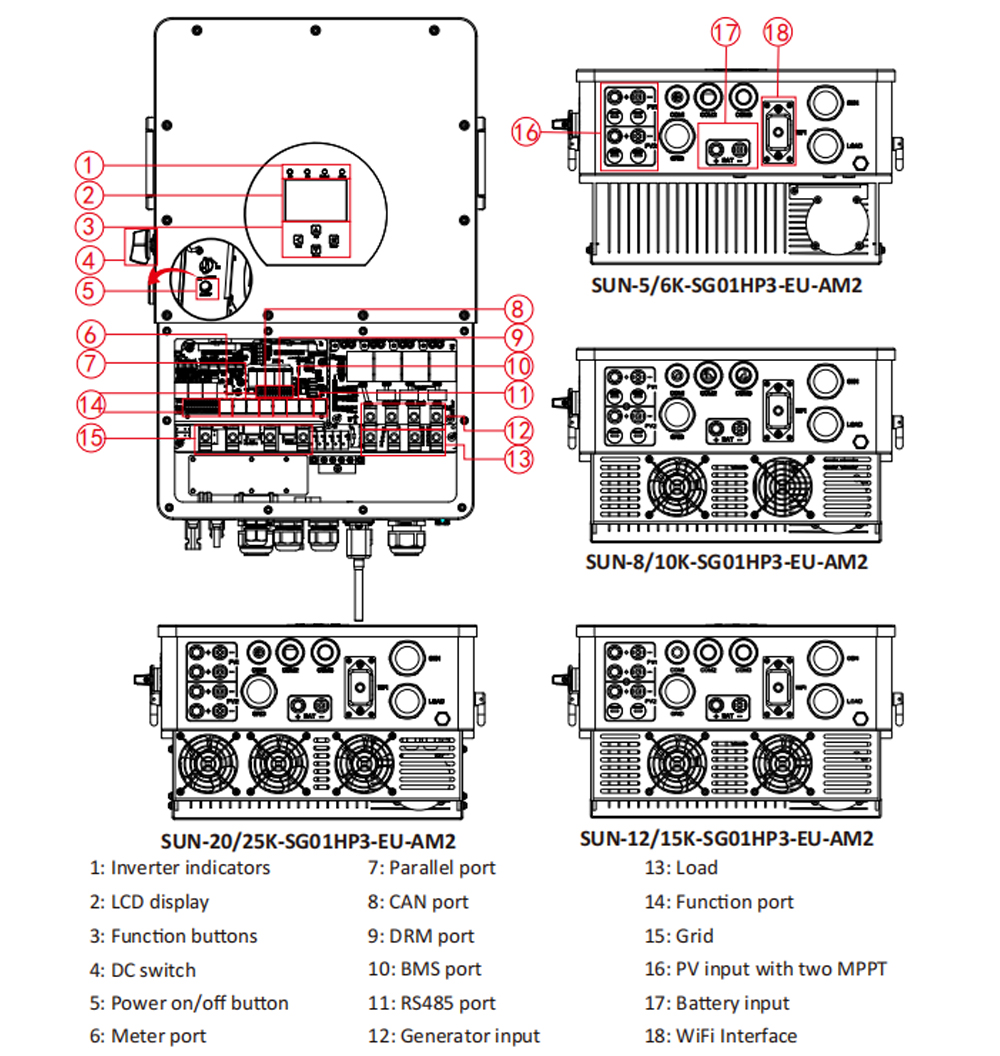

Product Overview

20kw HV inverter overview.jpg

Product Features
230V/400V Three phase Pure sine wave inverter.
Self-consumption and feed-in to the grid.
Auto restart while AC is recovering.
Programmable supply priority for battery or grid.
Programmable multiple operation modes: On grid, off grid and UPS.
Configurable battery charging current/voltage based on applications by LCD setting.
Configurable AC/Solar/Generator Charger priority by LCD setting.
Compatible with mains voltage or generator power.
Overload/over temperature/short circuit protection.
Smart battery charger design for optimized battery performance
With limit function, prevent excess power overﬂow to the grid.
Supporting WIFI monitoring and build-in 2 strings of MPP trackers.
Smart settable three stages MPPT charging for optimized battery performance.
Time of use function.
Smart Load Function.

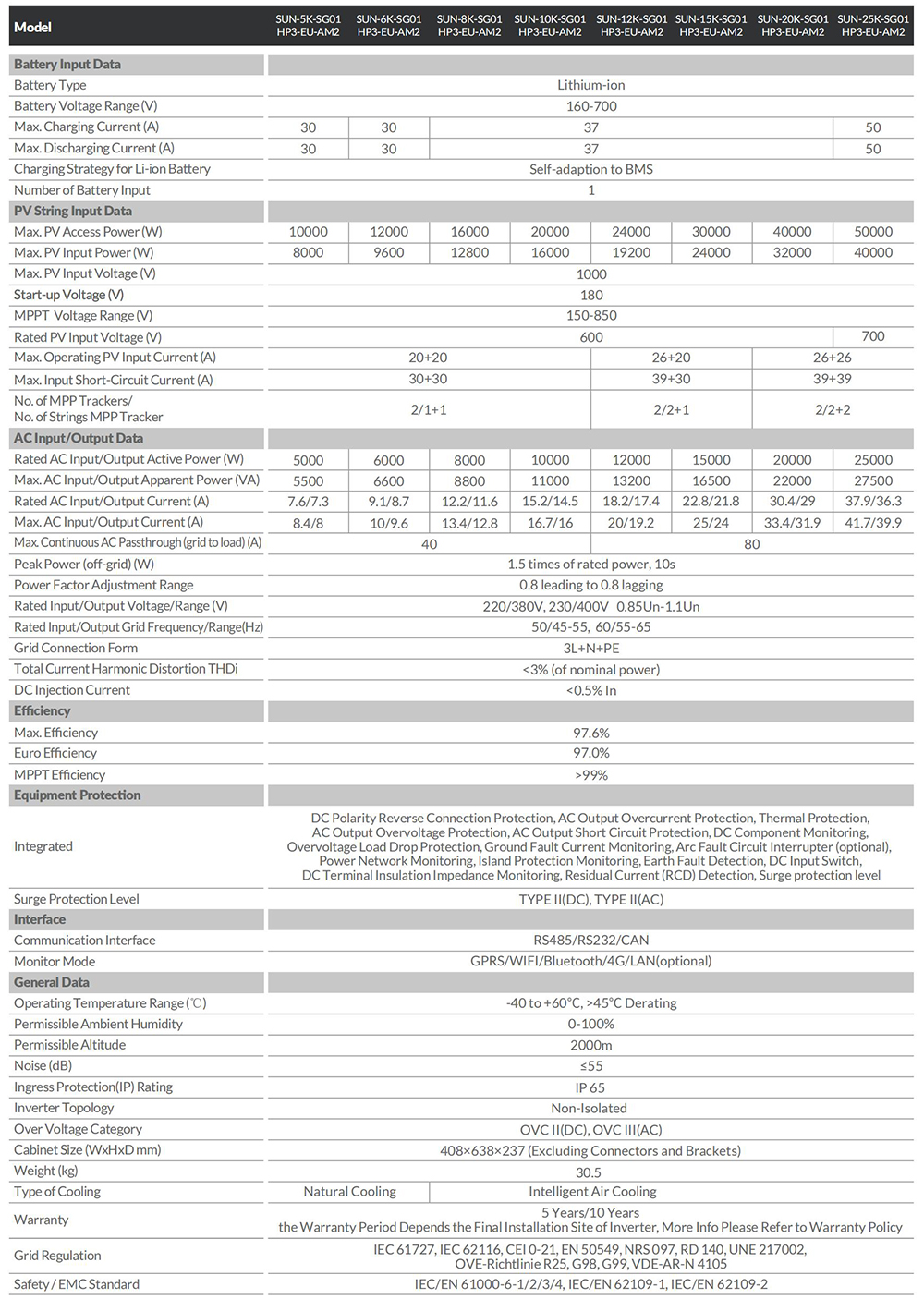

Product Technical Specifications
