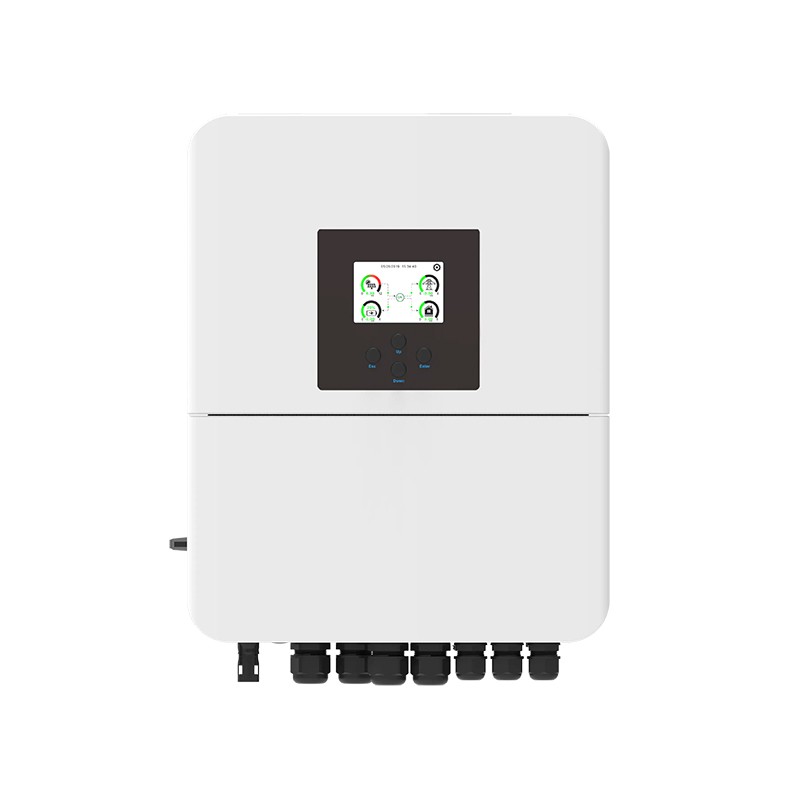

Single Phase Hybrid Dual MPPT low voltage battery supported Inverter 3kW-6kW

Single Phase Hybrid Inverter 3kW-6kW

Model: SUN-3/3.6/5/6K-SG04LP1-EU-SM2
Output Power Capacity: 3kW/3.6kW/5kW/6kW
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 140A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

INQUIRY

Product Details

Product Tags

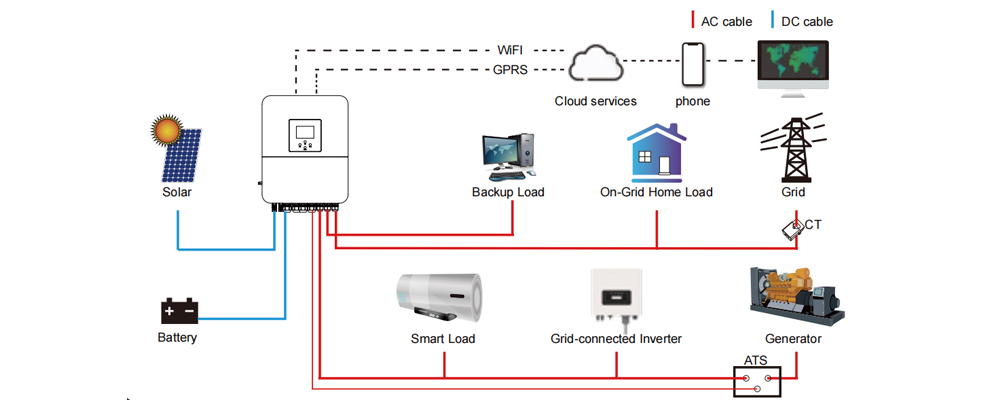

Basic System Architecture

The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.Generator or Utility,Solar panels. Consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air condittioner.

6kw solar inverter system diagram.jpg

Product Introduction
Single phase hybrid inverter is a multifunctional inverter,combining functions of inverter,solar charger and battery charger to offer uninterruptible power support with portable size.Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging,AC/solar charging,and acceptable input voltage based on different applications.

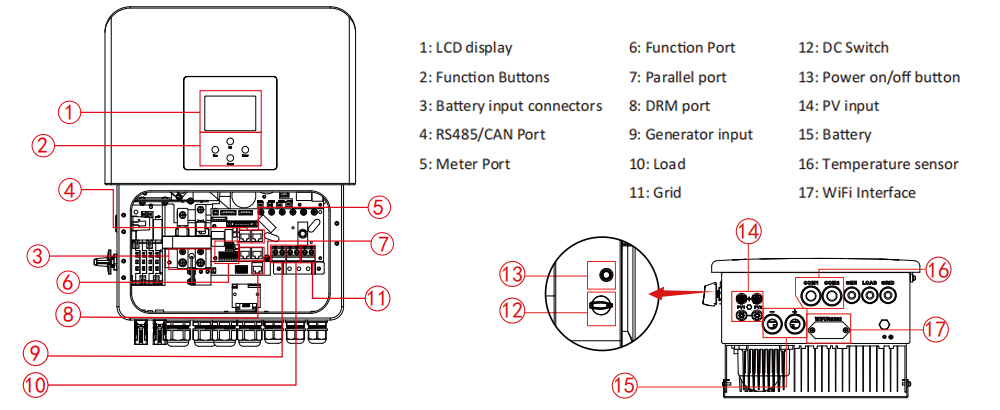

Product Overview

3-6kw inverter overview.jpg

Product Features

-Self-consumption and feed-in to the grid.
- Auto restart while AC is recovering.
-Programmable supply priority for battery or grid.
-Programmable multiple operation modes: On grid, off grid and UPS.
- Configurable battery charging current/voltage based on applications by LCD setting.
- Configurable AC/Solar/Generator Charger priority by LCD setting.
- Compatible with mains voltage or generator power.
- Overload/over temperature/short circuit protection.
- Smart battery charger design for optimized battery performance
- With limit function, prevent excess power overflow to the grid.
- Supporting WIFI monitoring and build-in 2 strings of MPP trackers
- Smart settable three stages MPPT charging for optimized battery performance.
- Time of use function.
- Smart Load Function.

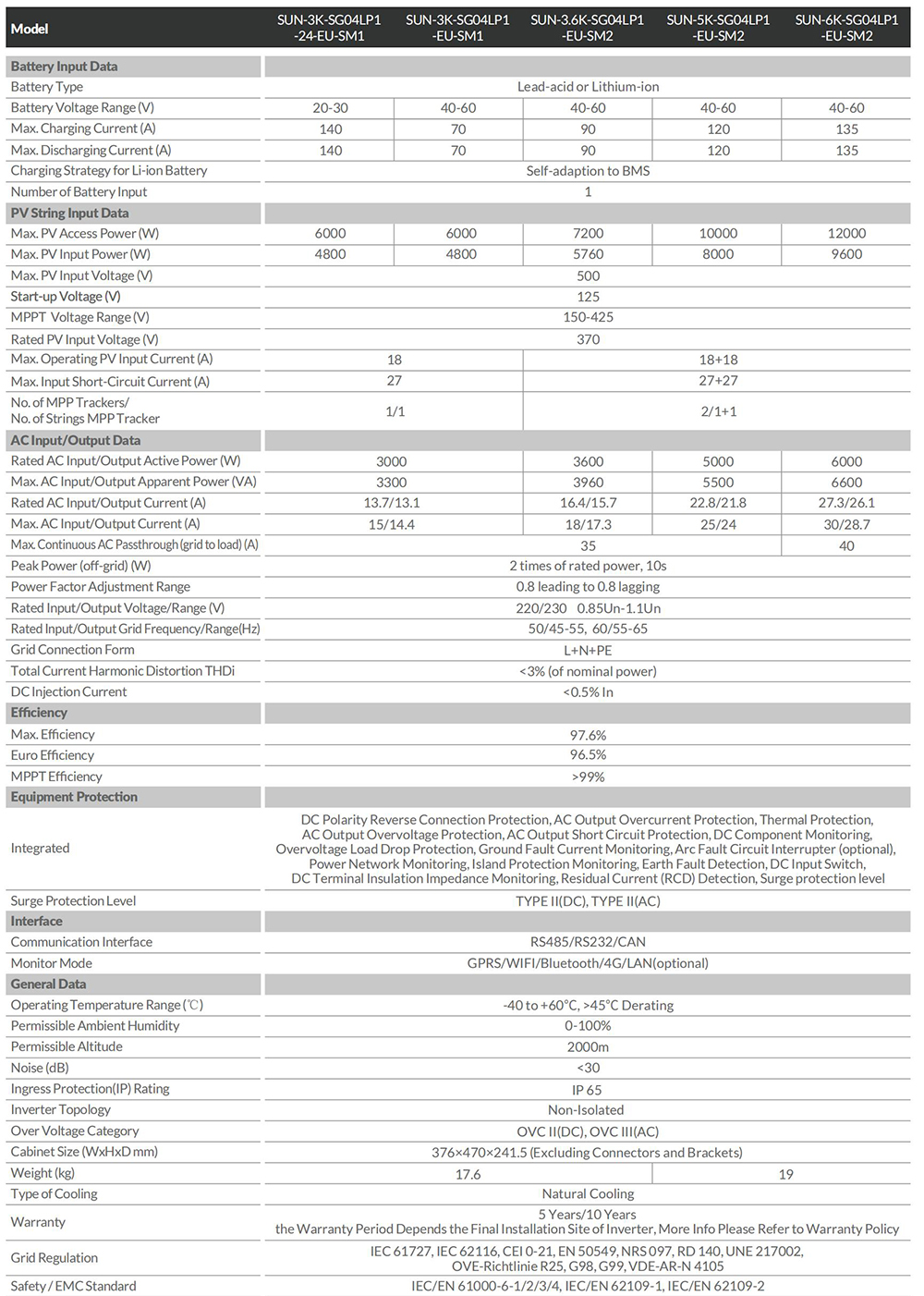

Product Technical Specifications
