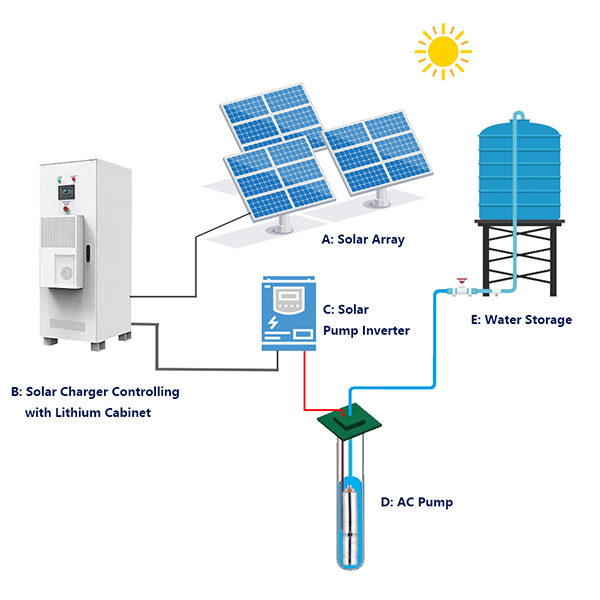

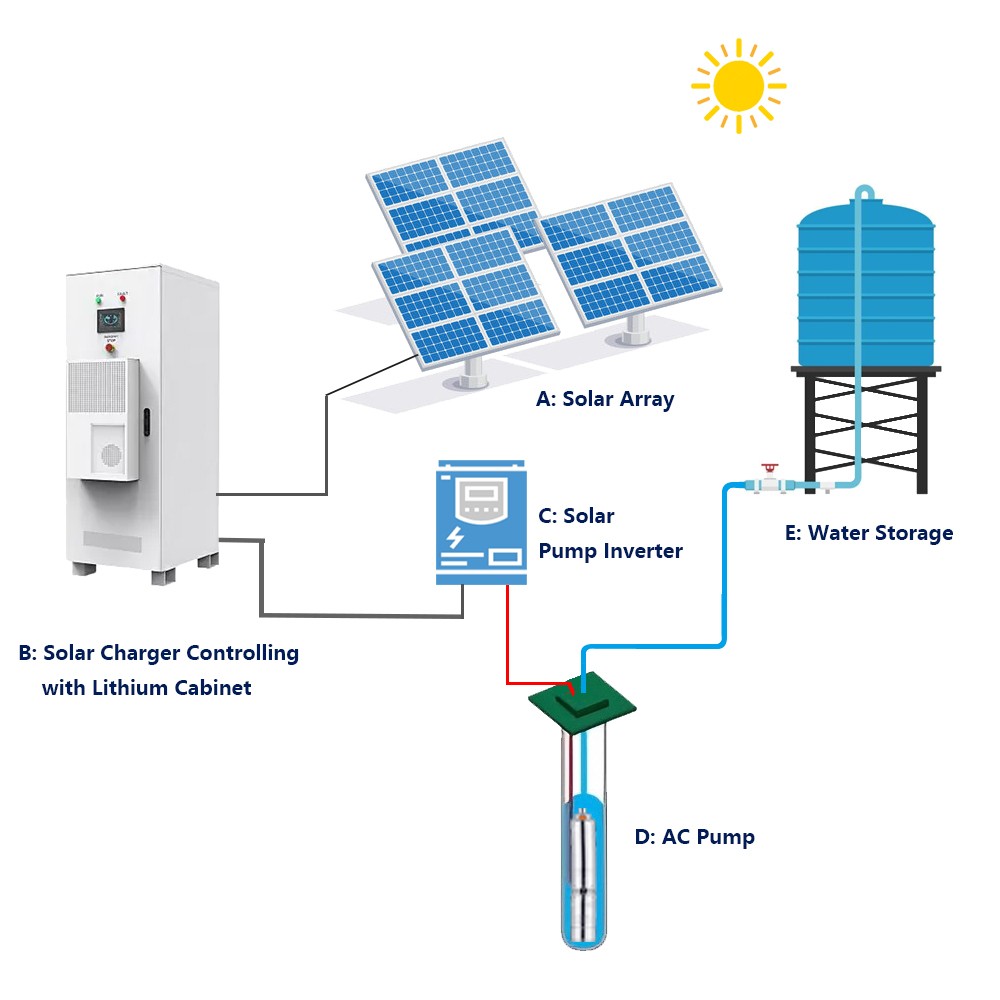

Introduction of Battery Type Solar Pump System

Battery-type solar pump system is a water pumping solution powered by solar energy that incorporates battery storage. In this system, solar panels generate electricity from sunlight, charge lithium battery bank by high voltage charger which is then stored energy in batteries. The stored energy powers solar pump inverter to drive the AC water pumps, allowing operation even when sunlight is insufficient or unavailable at night or on cloudy days.

Solar Panels:
The solar panels capture sunlight and convert it into electrical energy. The number of panels required depends on the energy needed by the pump.
Solar Charger Controlling with Lithium Battery Cabinet
High Voltage charger to charge the lithium battery and controlling the whole lithium battery bank to supply energy to solar pump inverter. It will make solar pump system work 24 hours or work at night during necessary.
Solar Pump Inverter and Controller:
A solar pump inverter is a critical component in a solar-powered water pumping system. Its main role is to convert the direct current (DC) electricity generated by the solar panels into alternating current (AC) electricity,220V-240V or 380V-460V which most water pumps require to operate. The inverter is with soft start and stop, with variable frequency driving function, also regulates the energy flow, ensuring the pump receives the correct voltage and frequency for optimal performance.
AC Pump Motor:
The AC water pump can be both submersible pump and surface pump, or any other type of AC pump depending on the application. Solar-powered pumps often come in AC (alternating current),since the sunlight is changeable, there is no battery storage back up for this pure solar powered pump system, the output AC energy is also changeable,so the Insulation class of motor shall be Class F.
Water Storage:
water storage tanks for consistent supply during nonsunny periods in the evening or cloudy days.
This systems operate off grid without battery storage,making them ideal for remote areas with abundant sunlight but limited access to conventional energy sources. They are ecofriendly, costeffective, and scalable for diverse waterpumping needs.
Advantages:
1. Continuous Operation: Works during cloudy weather or nighttime due to battery backup.
2. Energy Independence: Reduces dependency on the grid or fuel-powered pumps to reduce the fuel cost.
3. Saves Water: Can be integrated with smart irrigation systems for optimized water usage.
4. Lower Operation Costs: No fuel expenses and minimal maintenance compared to diesel pumps.
5. Environmental Friendly: Zero emissions and sustainable energy use.

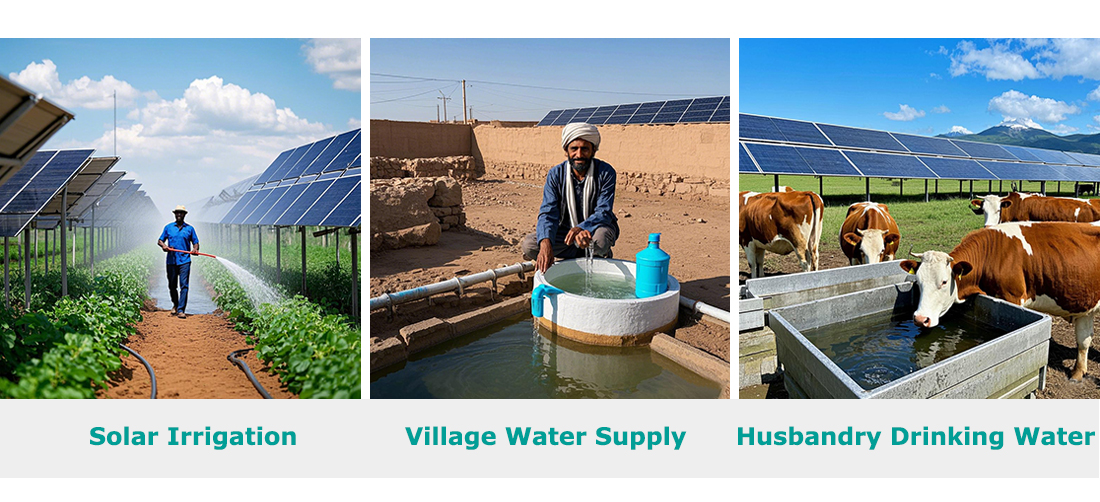

Applications

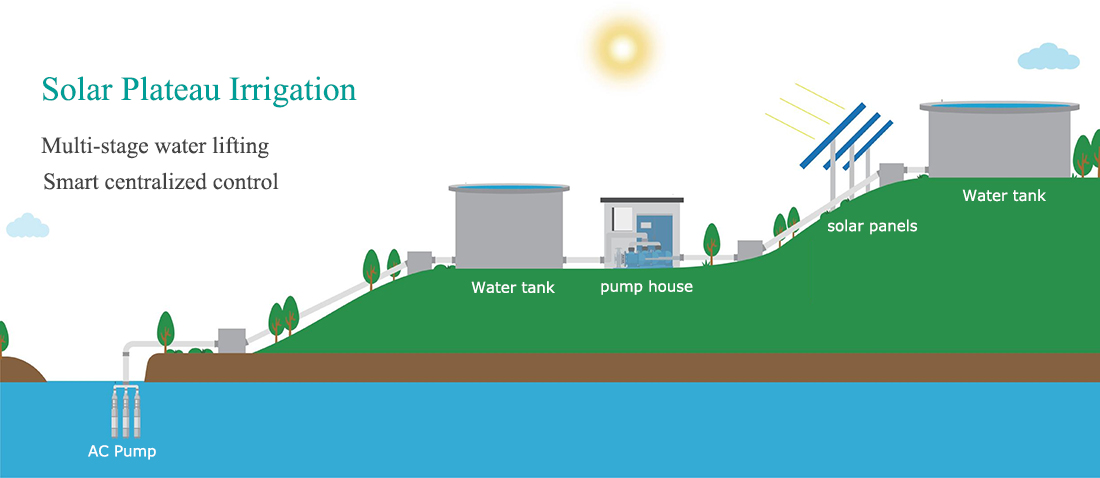

1. Agriculture
   Irrigation: Water crops efficiently in remote area farms.
   Livestock: Provide dringking water for animals in grazing areas.
2. Domestic & Community Use
    Supply clean drinking water in rural or off grid villages.
    Fill household storage tanks in areas with unreliable infrastructure.
3. Industrial
    Dewatering at construction sites or mines.
   Circulating water in cooling systems or aquaculture.
4. Environmental Projects
   Restore groundwater levels in arid regions.
   Maintain water features in parks or wildlife reserves by solar areation system
5. Emergency & Humanitarian Aid
   Rapid deployment for UN projects for irrigation and water supply for communities.
6. Urban & Recreational
   Fountains, ponds, or garden irrigation in ecofriendly buildings.Hybrid solar pump system offers a clean, reliable, and versatile solution for water pumping needs across industries. By leveraging renewable
energy, they address challenges like energy poverty, environmental degradation, and rising fuel costs, making them a cornerstone of sustainable
development.
