Low Voltage Battery 48V Three Phase Hybrid Inverter 14-20kW

Low Voltage Three Phase Hybrid Inverter 14kW-20kW

Model: SUN-14-20k-SG05LP3-EU-SM2
Output Power Capacity: 14kW/15kW/16kW/18kW/20kW
48V low voltage battery, transformer isolation design
Output Voltage/Frequency: 230/400V, 3L+N+PE 50/60Hz
100% unbalanced output, each phase; Max. output up to 50% rated power
Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
Support storing energy from diesel generator
6 time periods for battery charging/discharging

INQUIRY

Product Details

Product Tags

Basic System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.Generator or Utility,Solar panels. Consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air condittioner,it can also power farm center pivot machines.

Basic System Architecture.jpg

Product Introduction
Three phase hybrid inverter is a multifunctional inverter,combining functions of inverter,solar charger and battery charger to offer uninterruptible power support with portable size.Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging,AC/solar charging,and acceptable input voltage based on different applications.

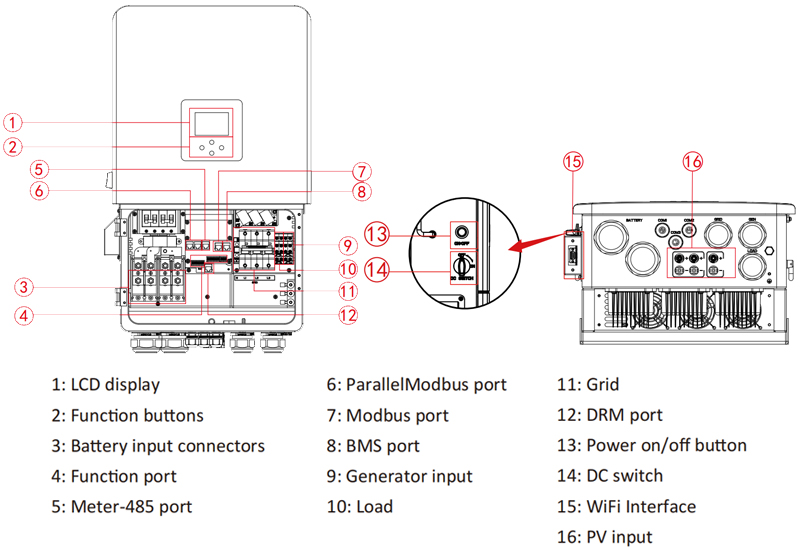

Product OverviewProduct Features

230V/400V Three phase Pure sine wave inverter.
Self-consumption and feed-in to the grid.
Auto restart while AC is recovering.
Programmable supply priority for battery or grid.
Programmable multiple operation modes: On grid, off grid and UPS.
Configurable battery charging current/voltage based on applications by LCD setting.
Configurable AC/Solar/Generator Charger priority by LCD setting.
Compatible with mains voltage or generator power.
Overload/over temperature/short circuit protection.
Smart battery charger design for optimized battery performance
With limit function, prevent excess power overﬂow to the grid.
Supporting WIFI monitoring and build-in 2 strings of MPP trackers.
Smart settable three stages MPPT charging for optimized battery performance.
Time of use function.
Smart Load Function.

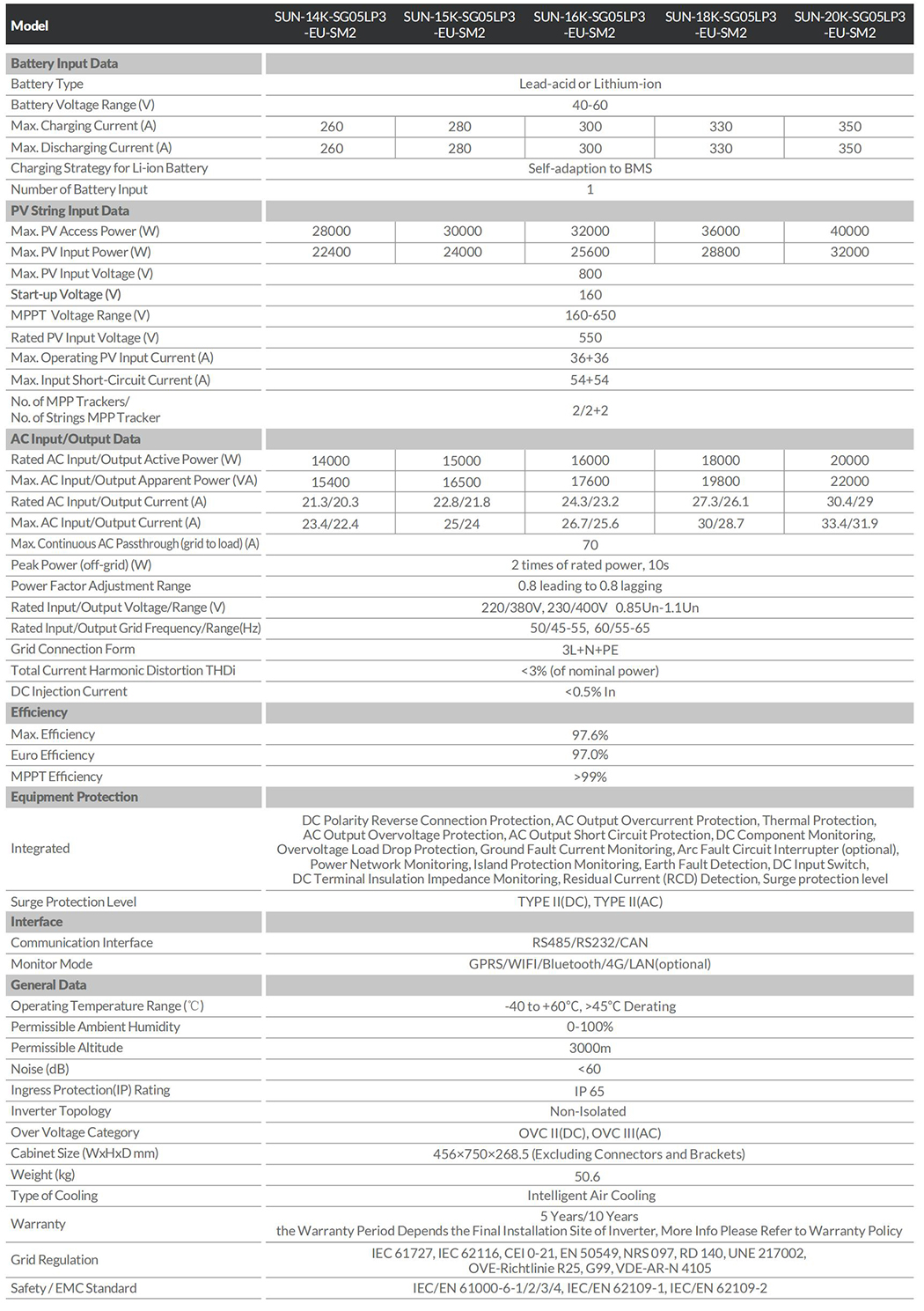

Product Technical Specifications
