Introduction to Solar Center Pivot Irrigation

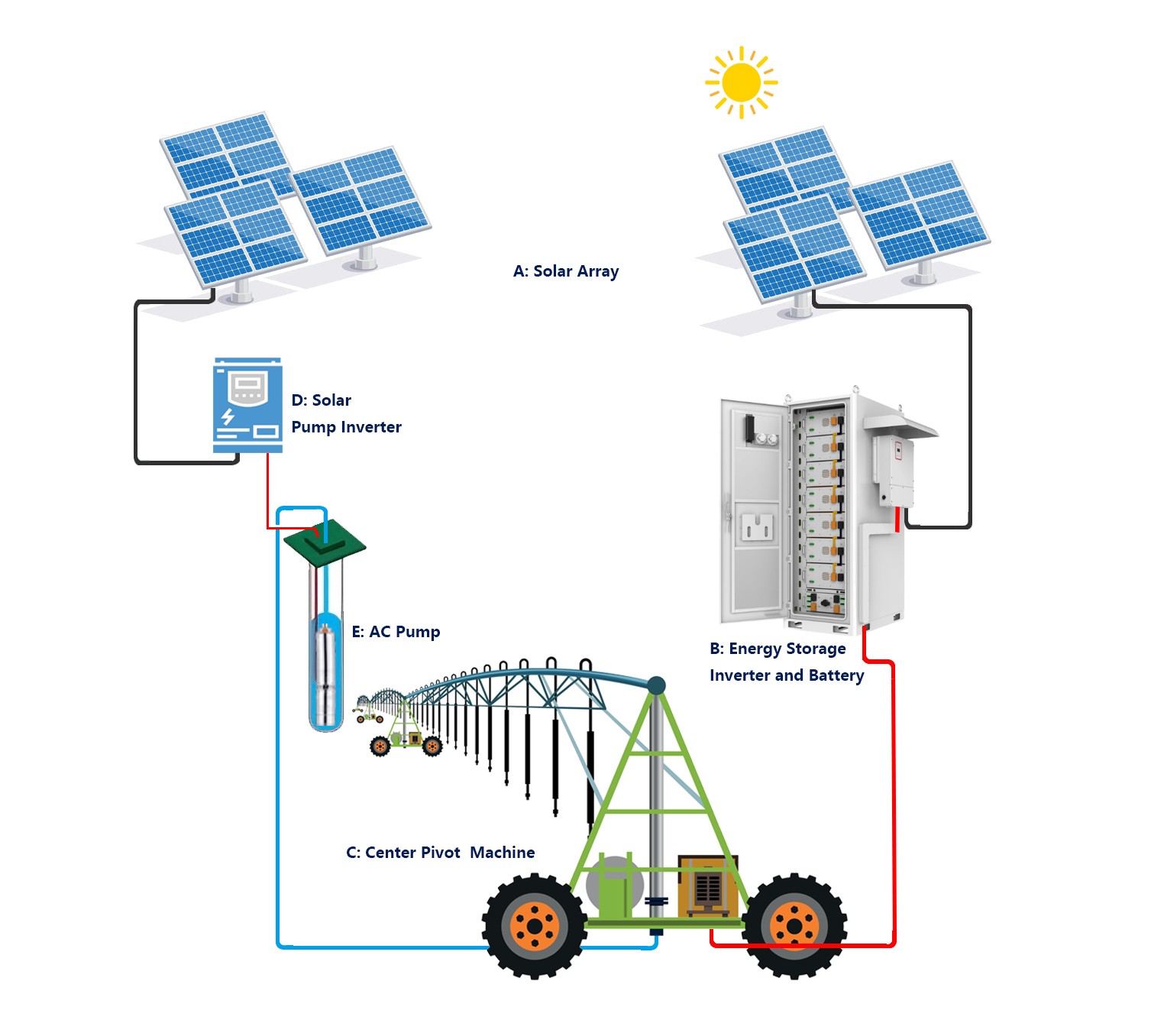

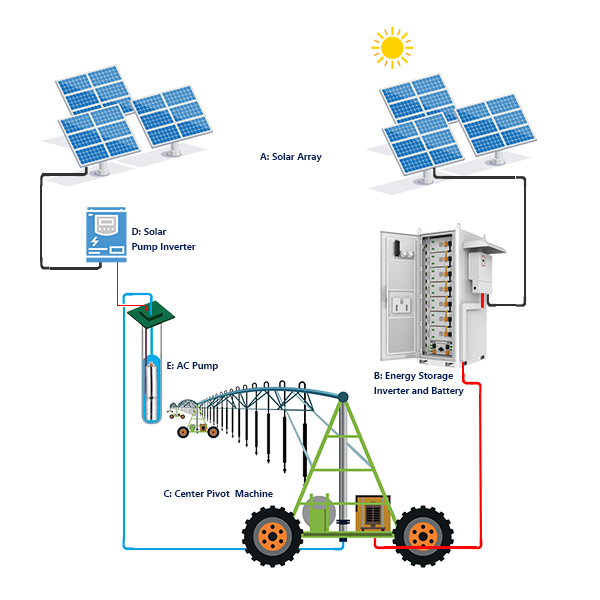

Solar center pivot irrigation is an solar agricultural solution that combines solar energy storage system with solar pumping irrigation systems to efficiently water large-scale farms. There are two solar system in one project. First solar pump system pumping water from brehole, river or dam and lifting it to center pivot pipelines, Then the solar energy storage system give energy supply to control systems of center pivot irrigation, controlling the moving of center pivot motors.

Solar Pump System:

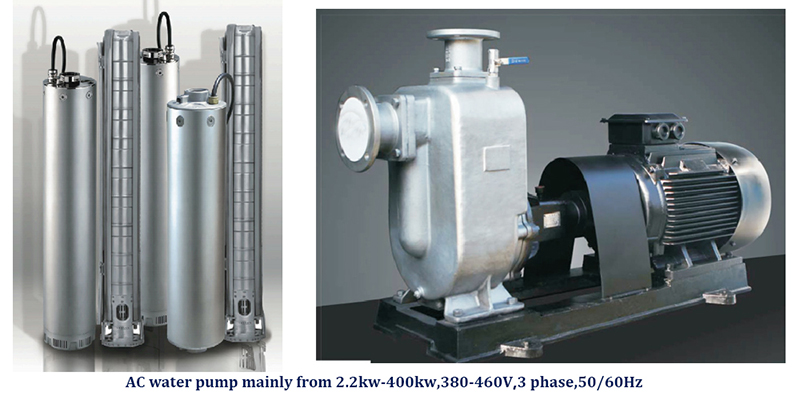

Solar pump system consists of solar panels, mounting structure, solar pump inverter and AC pumps. Solar pumping system lifting water from borehole,dam or river to center pivot irrigation piplines. Solar power system power capacity will upto 400kw for single pump.

Solar Energy Storage System
Center Pivot machine motor each span from different brand is mainly 1HP 380V,3 phase 50Hz. The center pivot irrigation controlling box need 380V, 3 phase 50Hz power supply. so the solar energy storage system output must be matching.

Solar Energy storage system supplying 380V, 3 phase 50Hz/60Hz AC electricity to center pivot controlling box, controlling the moving motors of center pivot irrigation system. Typical solar energy power system for moving motors controlling are from 10kw to 20kw with 10kwh 30kwh batteries. please contact Mileway Team for free calculate by whatsapp .
Advantages:
1. Continuous Operation: Suppling continues power supply for remote farm where the grid network is not stable, increasing harvest.
2. Energy Independence: Reduces dependency on the grid or fuel-powered pumps to reduce the fuel cost.
3. Saves Water: Can be integrated with smart irrigation systems for optimized water usage.
4. Lower Operation Costs: No fuel expenses and minimal maintenance compared to diesel pumps.
5. Environmental Friendly: Zero emissions and sustainable energy use.
Applications
Solar Center Pivot Agriculture Irrigation with Large Scale in Remote Area.
Irrigation: Water crops efficiently in remote area farms.

Solar center pivot irrigation offers a clean, reliable, and versatile solution for water pumping needs . By leveraging renewable
energy, they address challenges like energy poverty, environmental degradation, and rising fuel costs, making them a cornerstone of sustainable
development and increase food harvest in remote area.
